ACE Container a professional supplier of shipping containers and container parts.

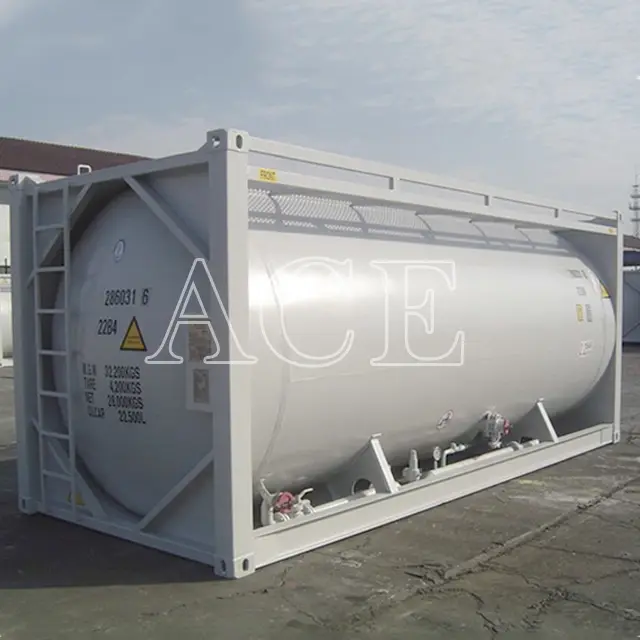

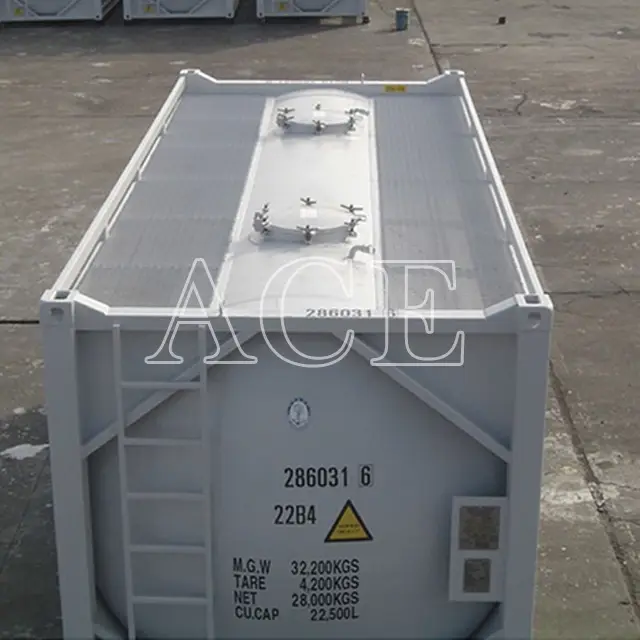

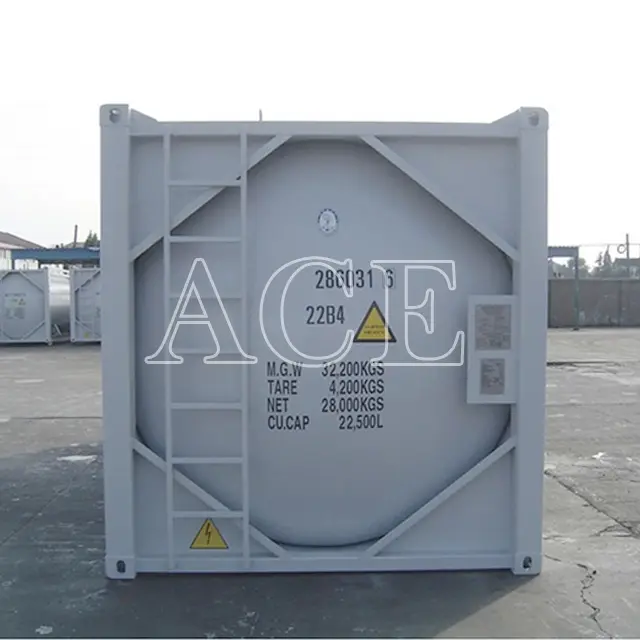

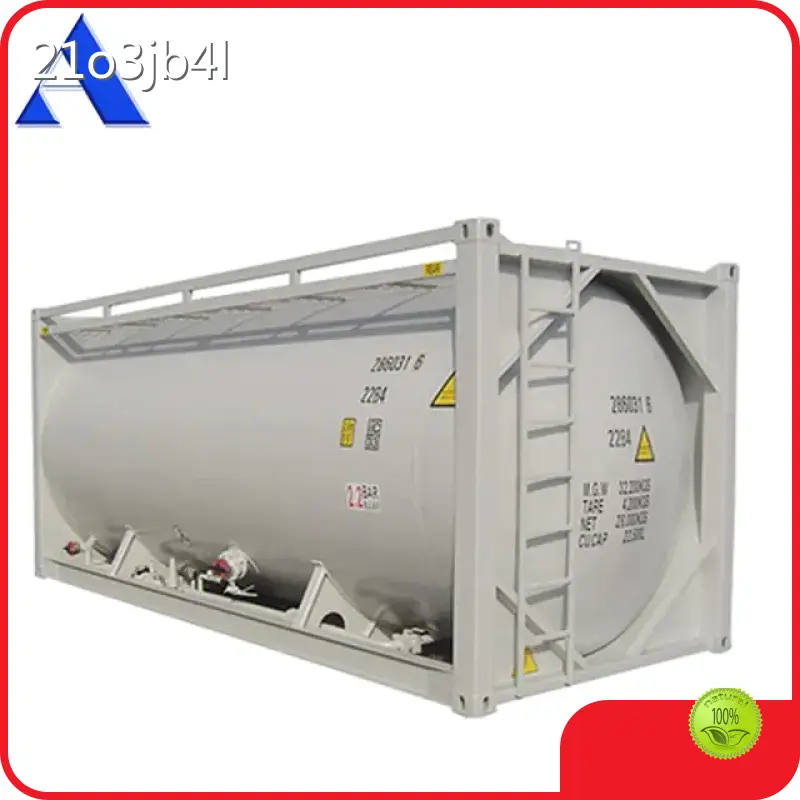

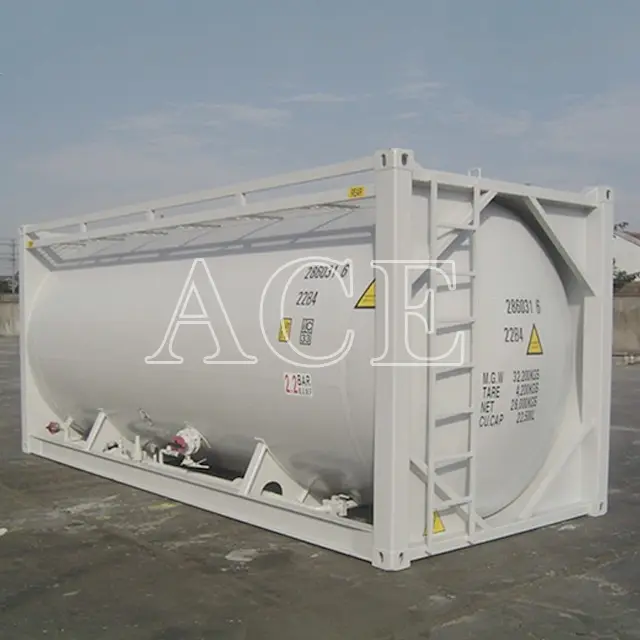

Iso Tank 1000 Liter ACE Container,
Product details of the iso tank 1000 liter
Product Information
ACE Container iso tank 1000 liter is made of the finest materials and is subtly crafted by the proficient workers. Product quality complies with current regulations and standards. The service offered to customers is great in ACE Container.
| Specification | ||
| Frame Dimensions (L x W x H) | 6058 x 2438 x 2591 mm | |
| Nominal Capacity | 20000-24000 litre (±0.75%) | |
| Maximum Gross Mass | 32200KGS | |
| Tare Mass | 4200 kg (± 3%) | |
| Design Temperature (Frame & Tank) | -19 to +80 °C | |
Pressure | Working | 0.22 bar |
| Test | 0.33 bar | |
| Material | Tank (Shell & Ends) | Q345B |
| Frame | SPA-H or equivalent | |
| Thickness | Shell | 4.5mm |
| Ends | 5.0mm | |
| Data Plates | One set of stainless steel data plates | |
| 500mm low profile, 8 point fixing with Super Tanktyt Lid seal. | ||
| Diameter of Air Inlet | 100mm cam lock type | |
| Supply of Air Source | Pressure:0.2 Mpa to 0.3 Mpa Air-Flow Capacity:>10m3/min | |
| Specification | ||
| Frame Dimensions (L x W x H) | 6058 x 2438 x 2591 mm | |
| Nominal Capacity | 20000-24000 litre (±0.75%) | |
| Maximum Gross Mass | 32200KGS | |
| Tare Mass | 4200 kg (± 3%) | |
| Design Temperature (Frame & Tank) | -19 to +80 °C | |
Pressure | Working | 0.22 bar |
| Test | 0.33 bar | |
| Material | Tank (Shell & Ends) | Q345B |
| Frame | SPA-H or equivalent | |
| Thickness | Shell | 4.5mm |
| Ends | 5.0mm | |
| Data Plates | One set of stainless steel data plates | |
| 500mm low profile, 8 point fixing with Super Tanktyt Lid seal. | ||
| Diameter of Air Inlet | 100mm cam lock type | |
| Supply of Air Source | Pressure:0.2 Mpa to 0.3 Mpa Air-Flow Capacity:>10m3/min | |
Company Feature
• We firmly believe that obtaining customer trust is based on the high-quality product and service, so we have set up a comprehensive service system and a professional customer service team. We are dedicated to solving problems for customers and meeting their demands as much as possible.
• Our company was incorporated in We have passed years of spring and autumn.
• At present, products are not only sold well in China but also exported to many foreign countries.
• We have a professional technical team, and set up a team of full-time development, quality control, and marketing, who have strong technical force and deep professional knowledge, providing strong support for enterprise product development, sales and so on.
Based on the professional production technology, produces quality shipping container,reefer container,tank container,container parts in large quantity. Our products are safe and eco-friendly, in line with national quality control standard. We guarantee the quality and provide you with a worry-free buying experience.
