Product details of the lpg iso containers


Quick Detail

ACE Container lpg iso containers is provided by a strong R&D team with technical improvements. With an outstanding performance and a competitive price, the product is highly cost-effective. lpg iso containers developed and produced by is widely applied to many industries and fields. It can fully meet the diversified needs of customers. The staff in ACE Container are highly recommended by customers.


Product Description

lpg iso containers has superior quality. The specific details are presented in the following section.

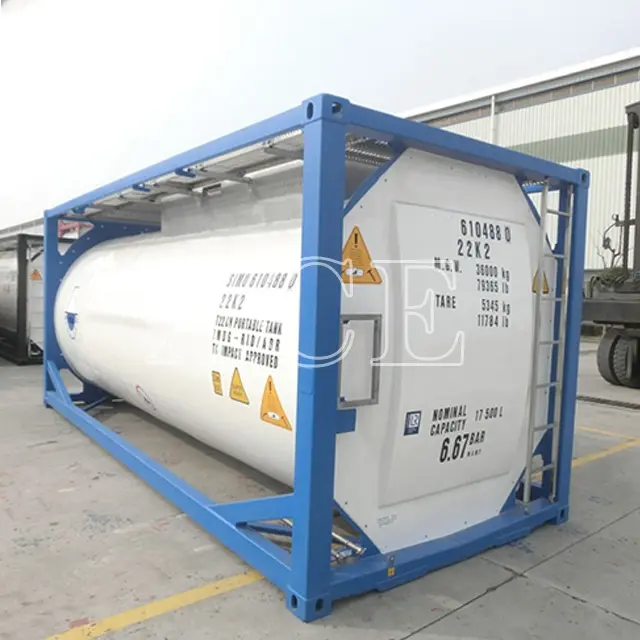

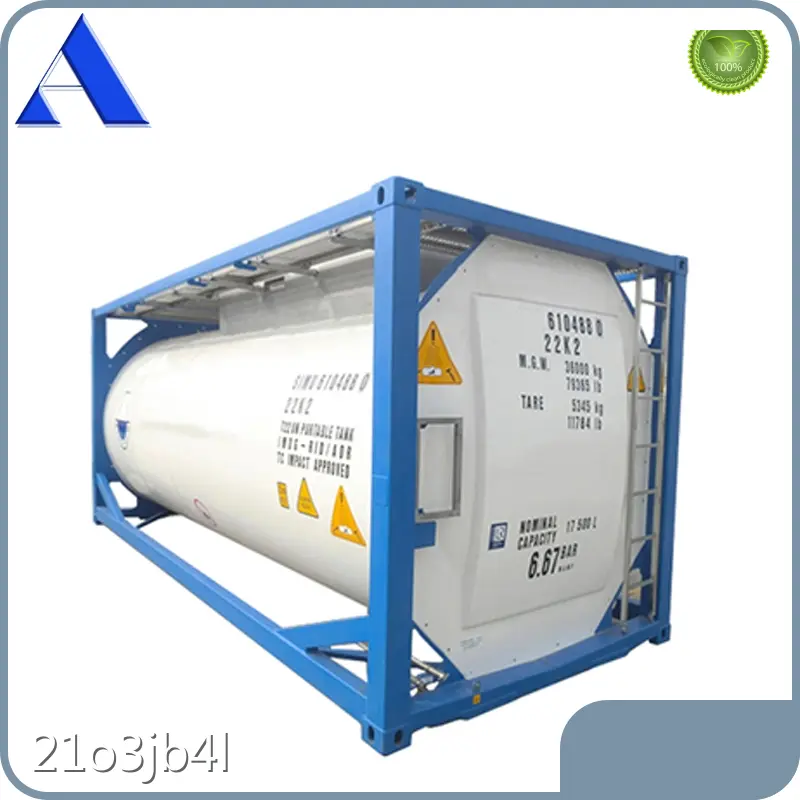

ACE Container offers the UN T14 Lined 20ft ISO Tank Container, specifically designed for the safe transportation of liquid chemicals. Constructed using high-strength stainless steel, this container features a corrosion-resistant lining to ensure the secure transport of liquid cargo. It complies with international standards for the transportation of hazardous materials and is suitable for a wide range of industrial applications, such as the chemical, petroleum, and food industries.



ACE Container's UN T14 tank container undergoes rigorous testing and quality control to ensure it meets the highest standards and delivers outstanding performance and reliability. Whether for land or sea transport, this ISO tank container provides customers with the assurance of safe and reliable transportation for liquid cargo.



The 20ft size offers sufficient capacity while remaining versatile and easy to handle. ACE Container understands the importance of meeting specific customer requirements and can provide customization options to accommodate additional features or modifications as needed.



With ACE Container's UN T14 Lined 20ft ISO Tank Container, customers can trust in a robust and secure solution for the transportation of liquid chemicals, backed by excellent quality and customer service from ACE Container's team of professionals. contact us for quality iso tank containers for sale

20 feet iso tank container for sulfuric acid
Frame Dimensions (L x W x H)6058 x 2438 x 2591 mm
Nominal Capacity21000 litre (±0.75%)
Maximum Gross Mass36000 kgs
Tare Mass 3510 kg (± 3%)
Design Temperature (Frame & Tank)-40 to +130 °C
PressureWorking 4 bar
Test6 bar

Material

Tank (Shell & Ends) SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%)
FrameSPA-H or equivalent

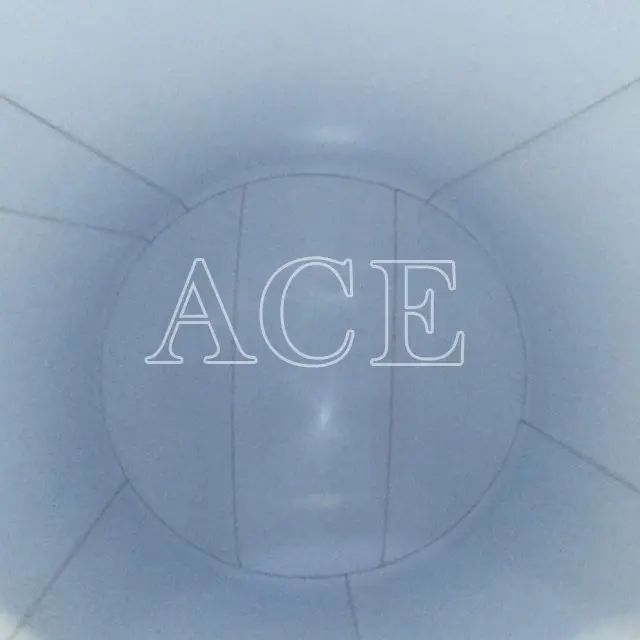

LiningPTFE
InsulationShellRockwool (50kg/m3) 50mm thick on aluminium foil.
EndsGlasswool (16kg/m3) thickness to suit on aluminium foil.
Steam Heating6 runs.110mm width stainless steel 304.1" BSP inlet, 1" BSP outlet both with captive caps and cable.4 bar working pressure, 6 bar test with warning decals and markings.A condensate drain is fitted.

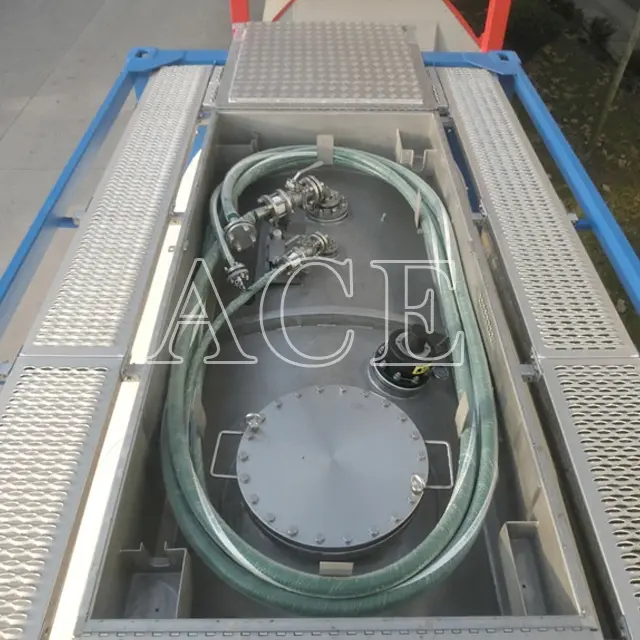

Manhole500mm low profile, 8 point fixing with Super Tanktyt Lid seal.

20 feet iso tank container for sulfuric acid
Frame Dimensions (L x W x H)6058 x 2438 x 2591 mm
Nominal Capacity21000 litre (±0.75%)
Maximum Gross Mass36000 kgs
Tare Mass 3510 kg (± 3%)
Design Temperature (Frame & Tank)-40 to +130 °C
PressureWorking 4 bar
Test6 bar

Material

Tank (Shell & Ends) SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%)
FrameSPA-H or equivalent
LiningPTFE
InsulationShellRockwool (50kg/m3) 50mm thick on aluminium foil.
EndsGlasswool (16kg/m3) thickness to suit on aluminium foil.
Steam Heating6 runs.110mm width stainless steel 304.1" BSP inlet, 1" BSP outlet both with captive caps and cable.4 bar working pressure, 6 bar test with warning decals and markings.A condensate drain is fitted.
Manhole500mm low profile, 8 point fixing with Super Tanktyt Lid seal.


Company Advantages

As a company, ACE Container & Parts Co., Limited has always focused on the production of shipping container,reefer container,tank container,container parts. focuses on interacting with customers to know well their needs and provides them with efficient pre-sales and after-sales services. Welcome to contact us.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
