ACE Container a professional supplier of shipping containers and container parts.

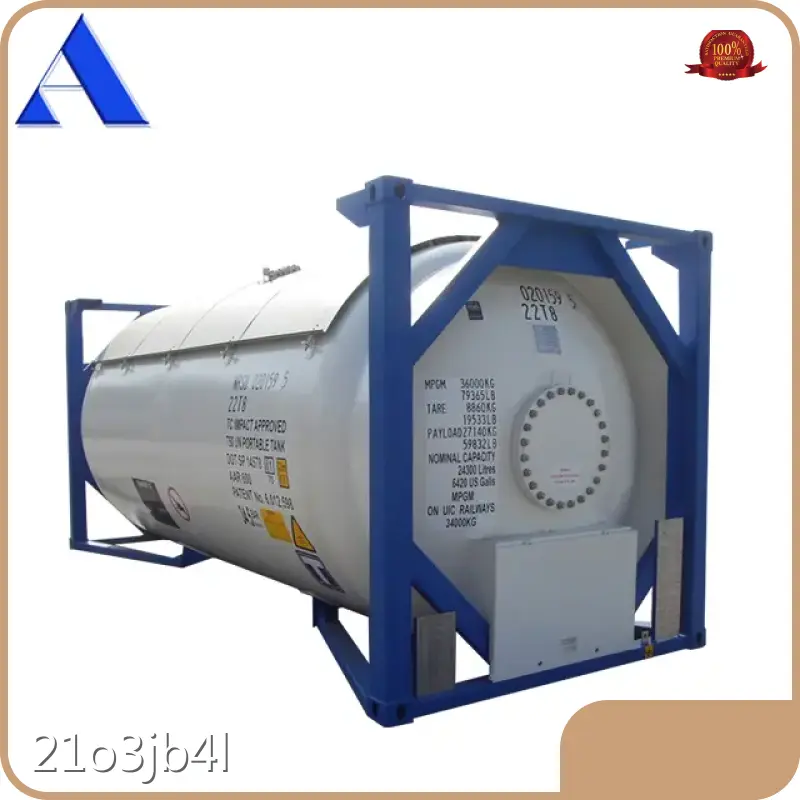

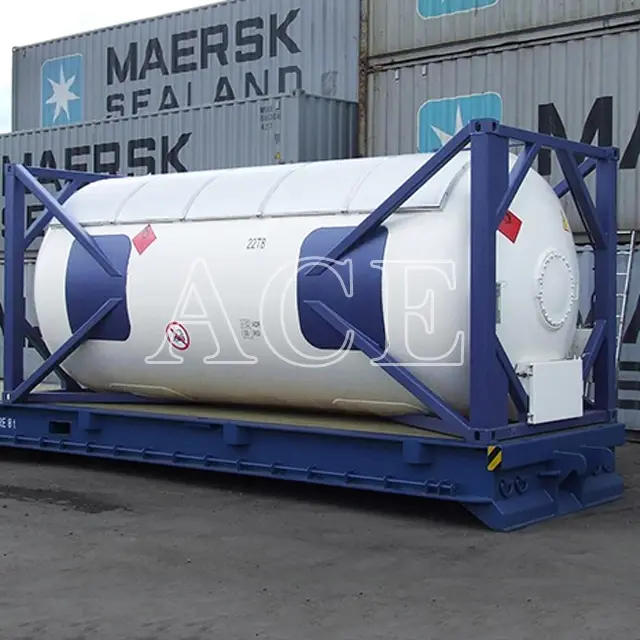

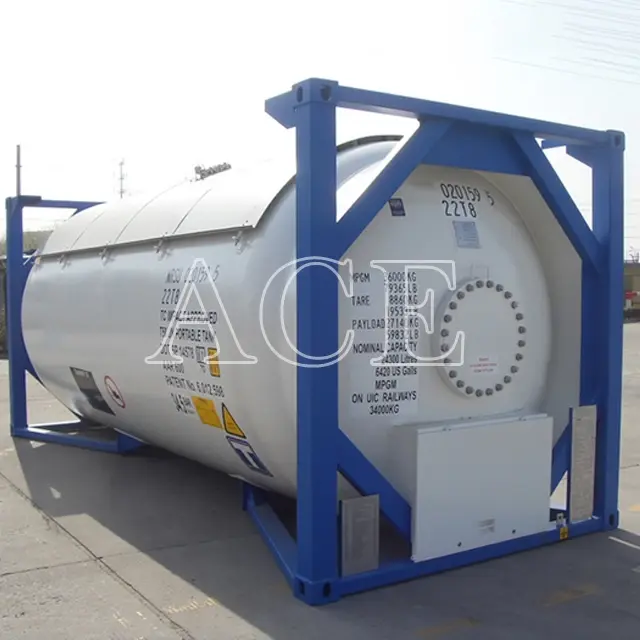

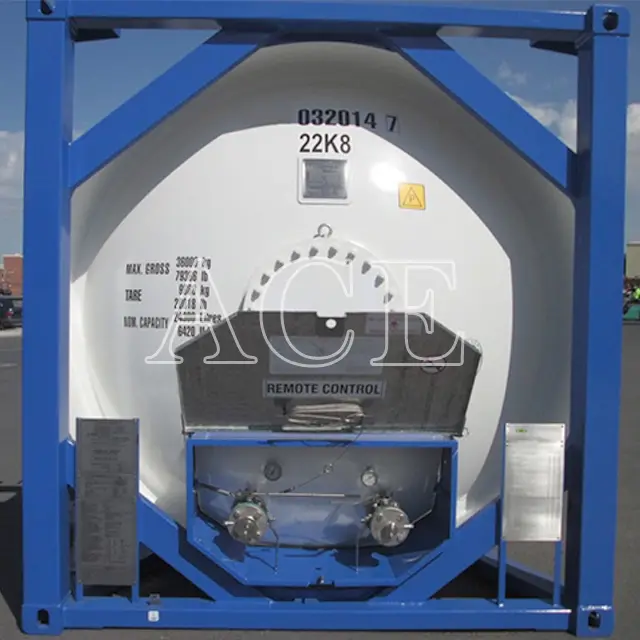

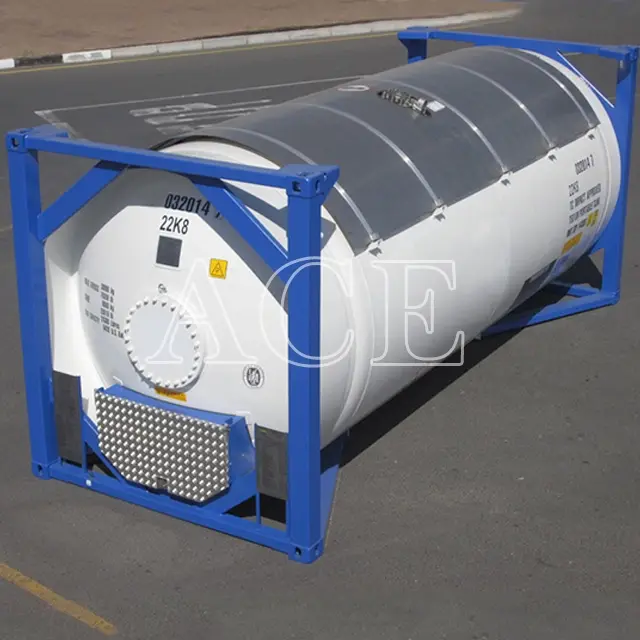

Product details of the 20ft iso tank capacity
Product Introduction
The production of ACE Container 20ft iso tank capacity adopts cutting-edge technology in compliance with the market standards. State-of-art production equipment and test equipment ensure the quality of this product. A professional and strict qc team has been set up to further guarantee the quality of this product.
Specification | ||
Frame Dimensions (L x W x H) | 6058 x 2438 x 2591 mm | |
Nominal Capacity | 24000 litre | |
Maximum Gross Mass | 36000 kgs | |
Tare Mass | 6360kgs | |
Design Temperature (Frame & Tank) | -40 to +55 °C | |
Pressure | Working | 22 bar |
Test | 31.45 bar | |
Material | Tank (Shell & Ends) | SA612N/WNr 1.4402/1.4404 |
Frame | SPA-H,Q345D or equivalent | |
Insulation | Shell | Rock wood(50kgs/M3), Max thickness 50mm |
Ends | Rock wood(16kgs/M3) | |
Manhole | DN500 inside diameter, with bolted cover, Spiral wound gasket(PTFE) | |
Thermometer | Thermometer range: -40 to +100 ℃ and -40 to +202 ℉, dual scale | |
Sun Shield | Tank fitted with a sin shield of 2mm aluminum alloy,covered angle approx. 120° |
Specification | ||
Frame Dimensions (L x W x H) | 6058 x 2438 x 2591 mm | |
Nominal Capacity | 24000 litre | |
Maximum Gross Mass | 36000 kgs | |
Tare Mass | 6360kgs | |
Design Temperature (Frame & Tank) | -40 to +55 °C | |
Pressure | Working | 22 bar |
Test | 31.45 bar | |
Material | Tank (Shell & Ends) | SA612N/WNr 1.4402/1.4404 |
Frame | SPA-H,Q345D or equivalent | |
Insulation | Shell | Rock wood(50kgs/M3), Max thickness 50mm |
Ends | Rock wood(16kgs/M3) | |
Manhole | DN500 inside diameter, with bolted cover, Spiral wound gasket(PTFE) | |
Thermometer | Thermometer range: -40 to +100 ℃ and -40 to +202 ℉, dual scale | |
Sun Shield | Tank fitted with a sin shield of 2mm aluminum alloy,covered angle approx. 120° |
