DNV 2.7-1 Standard Offshore Tank Container
Key Feature for Offshore Tank Container

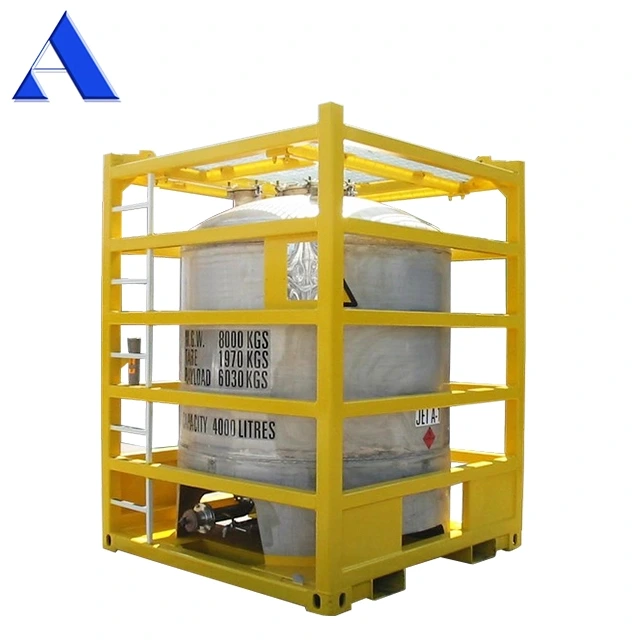

Offshore tank container is design to loading chemical cargoes mounted in steel frame.
The main application area is Oil offshore platform.
These offshore tank must be complied with DNV2.7-1 & EN12079 standard.
Please check as some details as follows:
Complies with DNV2.7-1:2006 Standard.
Complies with EN12079-2006 Standard.
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Specification | |
| Type | 4000L offshore tank |
| External(mm) | 2.268 x 2.268 x 2.500 |
| Inside Cubic Capacity(L) | 4000 |
| Maximum Gross Weight(KG) | 10000 |
| Tare Weight(KG) | 2400 |
| Maximum Payload(KG) | 7600 |
| Lifting Angle | 45 degree |
| Design pressure | 0.267 Mpa |
| Text pressure | 0.4 Mpa |
| Temperature | -40℃ for tank body |
| Stacking | 1 high for transport |
| Material | 316L for tank body |
| Classification Society | BV / DNV / LR |
| Specification | |
| Type | 4000L offshore tank |
| External(mm) | 2.268 x 2.268 x 2.500 |
| Inside Cubic Capacity(L) | 4000 |
| Maximum Gross Weight(KG) | 10000 |
| Tare Weight(KG) | 2400 |
| Maximum Payload(KG) | 7600 |
| Lifting Angle | 45 degree |
| Design pressure | 0.267 Mpa |
| Text pressure | 0.4 Mpa |
| Temperature | -40℃ for tank body |
| Stacking | 1 high for transport |
| Material | 316L for tank body |
| Classification Society | BV / DNV / LR |
