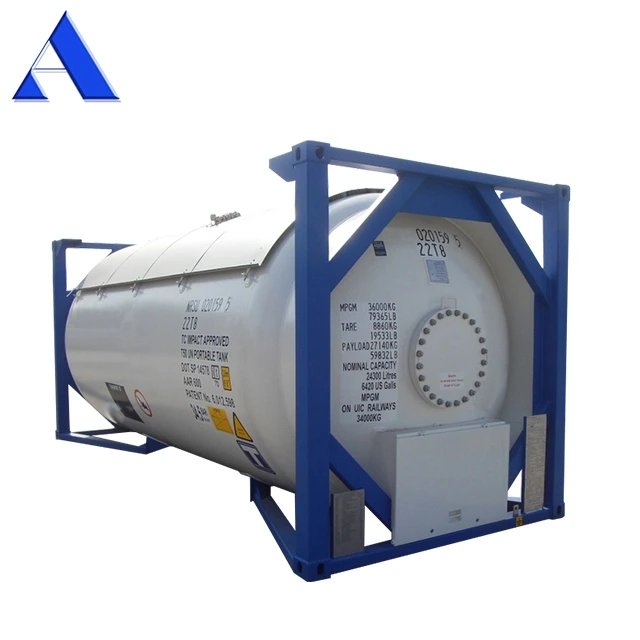

UN T50 Portable Compressed Liquefied Gas ISO Tank Container for LPG
Key Feature for 20ft Liquefied Gas Tank Container
1. Approval by BV, LR, CCS.
2. Meet requirement of IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID
3. Materials: Main body: Corten-A steel, Vessel: Stainless Steel 316L
4. Design Code: ASME VIII Div. 2 with ASME U2-Stamp
5. Design Temperature: -40 to +55 centigrade
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Specification | ||
| Frame Dimensions (L x W x H) | 6058 x 2438 x 2591 mm | |
| Nominal Capacity | 24000 litre | |
| Maximum Gross Mass | 36000 kgs | |
| Tare Mass | 6360kgs | |
| Design Temperature (Frame & Tank) | -40 to +55 °C | |
| Pressure | Working | 22 bar |
| Test | 31.45 bar | |
| Material | Tank (Shell & Ends) | SA612N/WNr 1.4402/1.4404 |
| Frame | SPA-H,Q345D or equivalent | |
| Insulation | Shell | Rock wood(50kgs/M3), Max thickness 50mm |
| Ends | Rock wood(16kgs/M3) | |
| Manhole | DN500 inside diameter, with bolted cover, Spiral wound gasket(PTFE) | |
| Thermometer | Thermometer range: -40 to +100 ℃ and -40 to +202 ℉, dual scale | |
| Sun Shield | Tank fitted with a sin shield of 2mm aluminum alloy,covered angle approx. 120° | |
| Specification | ||
| Frame Dimensions (L x W x H) | 6058 x 2438 x 2591 mm | |
| Nominal Capacity | 24000 litre | |
| Maximum Gross Mass | 36000 kgs | |
| Tare Mass | 6360kgs | |
| Design Temperature (Frame & Tank) | -40 to +55 °C | |
| Pressure | Working | 22 bar |
| Test | 31.45 bar | |
| Material | Tank (Shell & Ends) | SA612N/WNr 1.4402/1.4404 |
| Frame | SPA-H,Q345D or equivalent | |
| Insulation | Shell | Rock wood(50kgs/M3), Max thickness 50mm |
| Ends | Rock wood(16kgs/M3) | |
| Manhole | DN500 inside diameter, with bolted cover, Spiral wound gasket(PTFE) | |
| Thermometer | Thermometer range: -40 to +100 ℃ and -40 to +202 ℉, dual scale | |
| Sun Shield | Tank fitted with a sin shield of 2mm aluminum alloy,covered angle approx. 120° | |
