ACE Container a professional supplier of shipping containers and container parts.

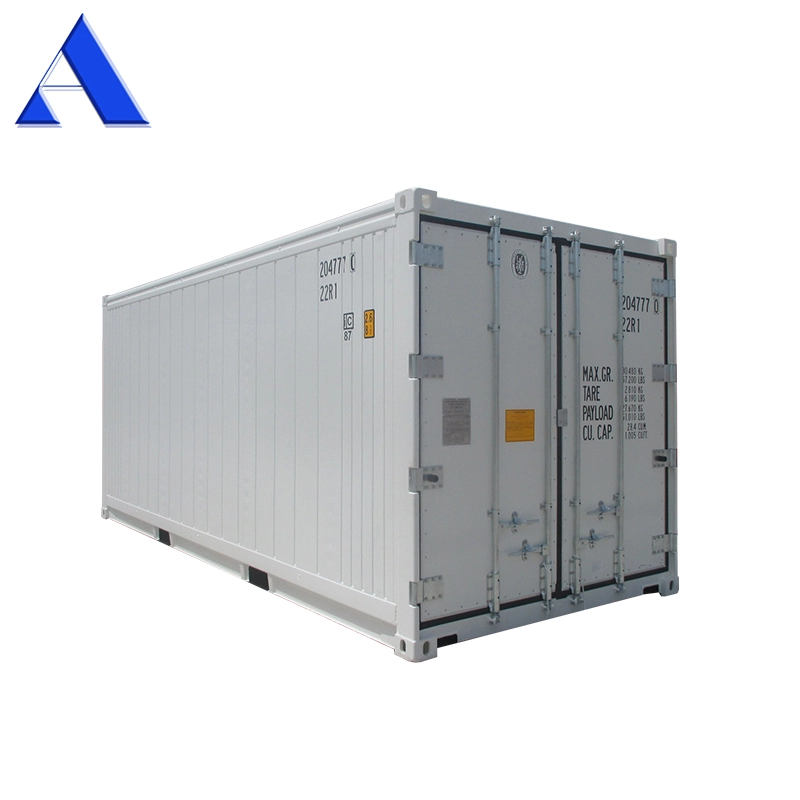

Key Feature for 20ft Insulated Reefer Container without Cooling Unit
1. Material: Corten Steel and SS
2. Approve: BV , GL , ABS , DNV
3. Meet requirement of ISO, UIC, TIR, CSC, TCT
4. Color: White
5. Floor: T type floor
6. Logo: Customized
Forklift Pocket Dimensions
|
||
Width
|
360
|
MM
|
Height
|
115
|
MM
|
Center Distance
|
2050
|
MM
|
Ratings
|
||
Max. Gross Weight
|
30480
|
KGS
|
Tare Weight
|
2400
|
KGS
|
Tare Weight (incl. Unit: 540kg)
|
2940
|
KGS
|
Max. Payload
|
27540
|
KGS
|
Cargo access height
|
2221
|
MM
|
Insulation
|
||
Roof
|
80
|
MM
|
Side walls
|
60
|
MM
|
Door panels
|
74
|
MM
|
Floor
|
76/112
|
MM
|
Heat leakage value
|
Umax = 21 kcal / deg.c.hr. at the mean wall temperature 293K (20 ℃) (including reefer unit.)
|
|
Max. air leakage value
|
Qmax = 5 m3/hr. (incl. Reefer unit max. 0.5m3/h) measured at 250±10Pa
|
