ACE Container a professional supplier of shipping containers and container parts.

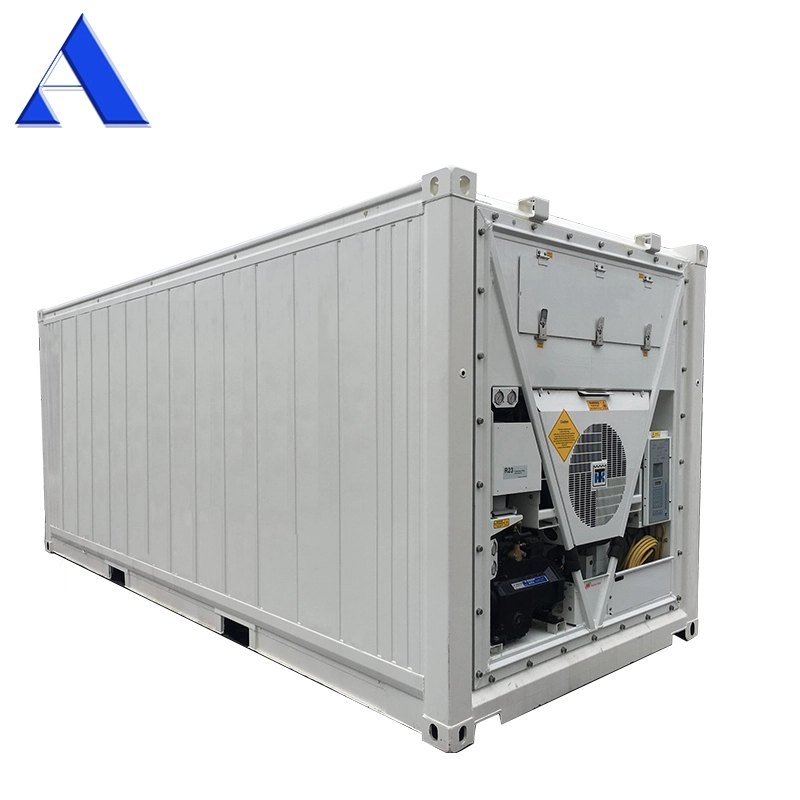

20ft Deep Freezer Reefer Container
Key Feature for 20ft High Cube Reefer Container
1. PU Forming Insulation
2. AL celling, Stainless Steel Liner, AL T Floor, MGSS outer panel, Corten Steel Frame
3. World Glass Marine Cooler: Thermo King, Daikin, Carrier
4. Inside Temperature Range: -60 to +25 ℃
5. Power: 380V/460V, 3phase, 50/60hz.
6. With CSC Certification issued by BV
7. Optional: Diesel Generator
-60 -70 ℃ New Deep Freezer Container 20ft
Deep Freezer Container 20ft is a good insulation, air tightness container. It has its own cooler system and can maintain 20ft freezer container a certain low temperature. So that it's mainly applicable for transportation of tunas and medicine.
The container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or below deck) throughout the world and will range from -40°C to +80°C without effect on the strength of basic structure.
Classification Society: with BV certified
|
Specifacations of 20ft Carrier Refrigerated Container
|
|
|
Dimension
|
20ft
|
|
External Size
|
6058 x 2438 x 2591mm
|
|
Internal Size
|
5468 x 2294 x 2273mm
|
|
Door Opening(W x H)
|
2290 x 2264mm
|
|
Inside Cubic Capacity
|
28.4
|
|
Maximum Gross Weight
|
30480
|
|
Tare Weight
|
2900
|
|
Maximum Payload
|
27580
|
|
Allowable Stacking Weight
|
216000
|
|
Cooling Capacity /W
|
6300/5580 AT -18℃ Inside/ 38℃ Outside
60/50HZ
|
|
Main Circuit
|
3 PHASE AC 440, 460V/380, 400, 415
60/50HZ
|
|
Consumption /KW
|
MAX 13.5 60HZ
|
|
Heat Leakage
|
23
|
|
Air Leakage
|
5
|
|
Temperature
|
-60/-70 ℃
|
|
Warranty
|
Container Body: 1 year
|
|
Cooler Units: 1 year
|
|
|
Compressor: 3 years
|
|
|
Marks: 5 years
|
|
