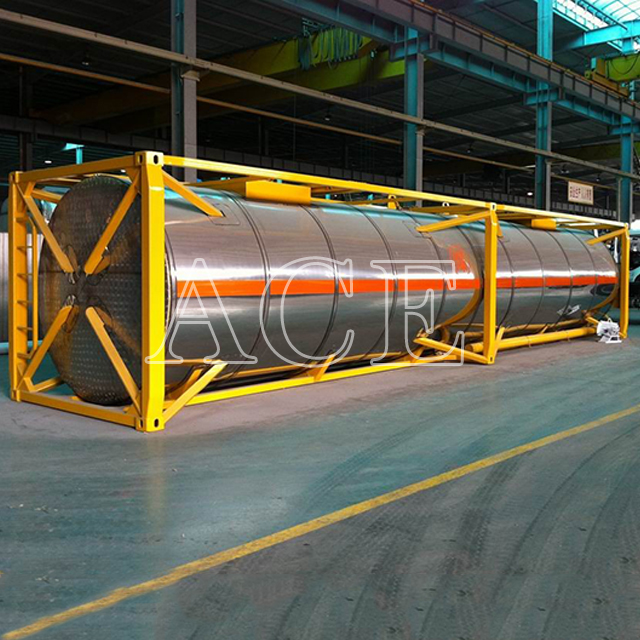

Key Feature for 20ft Diesel Tank Container
The tank containers are suitable for the transportation of diesel oil by rail,
road and ships throughtout the world. All materials used in the construction shall
withstand extremes of temperature range from -20°C to +50°C,without effecting
on the strength of container.
| Quantity: |
|---|
| Dimension | Metric | Imperial |
| Capacity | 22500 LTR | (5943 US gal) 4949 gal |
| Maximum Gross Weight | 32000 KG | 70548 LBS |
| Tare | 4200 KG | 9260 LBS |
| Construction: | ||
| Working Pressure | 2.2 bar | 32 psi |
| Test Pressure | 3.3 bar | 48 psi |
| Steam Working Pressure | 4.0 bar | 58 psi |
| Relief Valve Set Pressure | 2.2 bar / -0.21 bar/vac | 32 psi / -3 vac/psi |
| Ambient Temp. Range | -19°C up-to +80°C | -2,2°F up-to +176°F |
| Maximum Cargo Temp | 80°C | 176°F |
| Dimension | Metric | Imperial |
| Capacity | 22500 LTR | (5943 US gal) 4949 gal |
| Maximum Gross Weight | 32000 KG | 70548 LBS |
| Tare | 4200 KG | 9260 LBS |
| Construction: | ||
| Working Pressure | 2.2 bar | 32 psi |
| Test Pressure | 3.3 bar | 48 psi |
| Steam Working Pressure | 4.0 bar | 58 psi |
| Relief Valve Set Pressure | 2.2 bar / -0.21 bar/vac | 32 psi / -3 vac/psi |
| Ambient Temp. Range | -19°C up-to +80°C | -2,2°F up-to +176°F |
| Maximum Cargo Temp | 80°C | 176°F |
